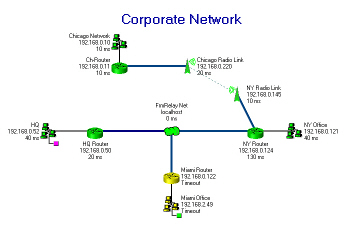

Multi-level vectorial maps Maps Hosts, agents and services may be displayed on maps designed by the user in the same manner as in a graphics or CAD application. A complete set of designing tools is offered to make the designing process as efficient as possible. Hosts may be grouped corresponding to their location or arranged in a logical hierarchy. Text, icons and symbols may be added to emphasize certain elements. Different host states are represented by different icon colors.

Click here to enlarge

Sub-maps A sub-map may be assigned to a higher-level map whenever a hierachical dependence between monitoring objects should be established. Examples are: SNMP agents monitoring specific device variables of a host All hosts of an office within a building All web servers of an enterprise RadarPing Professional offers unlimited hierarchical sub-mapping.

Click here to enlarge
